Use VVDI Key Tool Plus to Read BMW M95256 EEPROM Data

Today, I’ll show you how to read BMW M95296 EEPROM data with Xhorse VVDI Key Tool Plus Pad.

Preparation:

8-pin socket clip adapter.

VVDI Key Tool Plus

EEPROM

Steps:

1. Remove & clean the glue around EEPROM first.

2. Connect 8-pin socket clip adapter to EEPROM and VVDI Key Tool Plus, then fix 8-pin socket clip adapter.

3. Click “EEPROM”>> “ST”>>“M95XXX”>>“M95256(adapter)”.

4. Click “Read”>> “EEPROM”, then try to read the data.

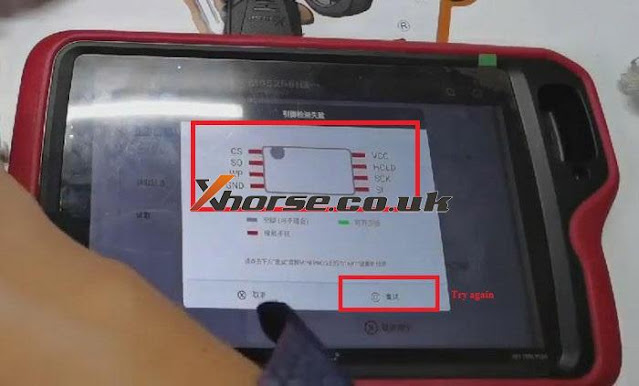

5. Red means connection failure, so, from the picture we can see that we need to check the connection. After checking the connection, click “Try again”.

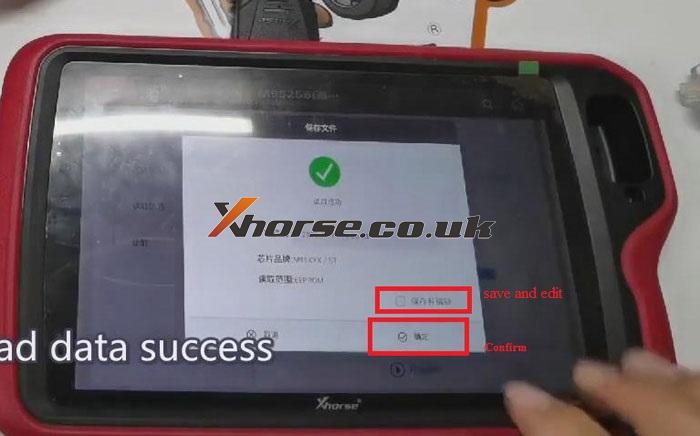

6. Now, when reading data is successful, save EEPROM file. Then we can read out EEPROM data.
