What Xhorse tool for renew key?

Planning to start my trip with keys, and wanna know what Xhorse tool should I buy for renew key? I would like to start to renew used key, clean them and add to car - sell for others.

Xhorse tools that is able to renew keys:

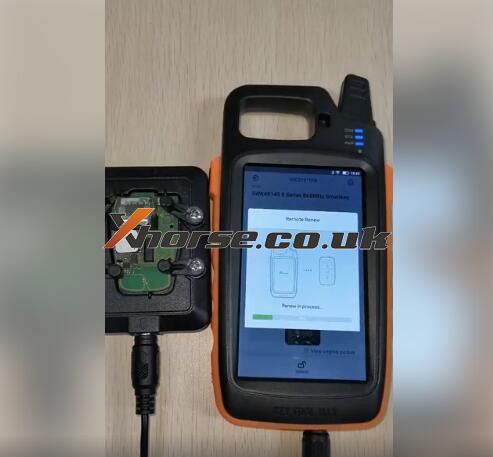

Xhorse VVDI Key Tool Max with Renew Cable: yes (best coverage)

vvdi key tool plus: yes

VVDI Mini Key Tool: Yes

Moreover, The question must be - What Tool$$$$

$ must buy. With one tool you can't start also you will need a cutting machine and a minimum of 1 year of learning.

And more advice:

I think maybe the best thing to do.

Is to start with old PCB's from computers found on the junkyard.

And just learn how to remove. Clean and solder back.

EEPROM, microprocessors.

It's free. Don't need expensive equipment.

Low cost is OK. But need adjustable temperature, on the soldering iron.

And then need a lot of practice.

And a low-cost set of solder tools.

Start with this a couple of months.

And then move on to junkyard locks.

dismantle into pieces.

Many different models, from different cars.

Work with this for a while. Its low cost.

After this, its OK to look at the rest.

And maybe get a programmer, or something.

https://www.xhorse.co.uk/

Xhorse VVDI Key Tool Plus Program Keys for Suzuki Wagon R 2020

How to use Xhorse VVDI Key Tool Plus Pad to program 2 keys for Suzuki Wagon R 2020? Here is the procedure in details as below:

Connect Key Tool Plus with car OBD, press

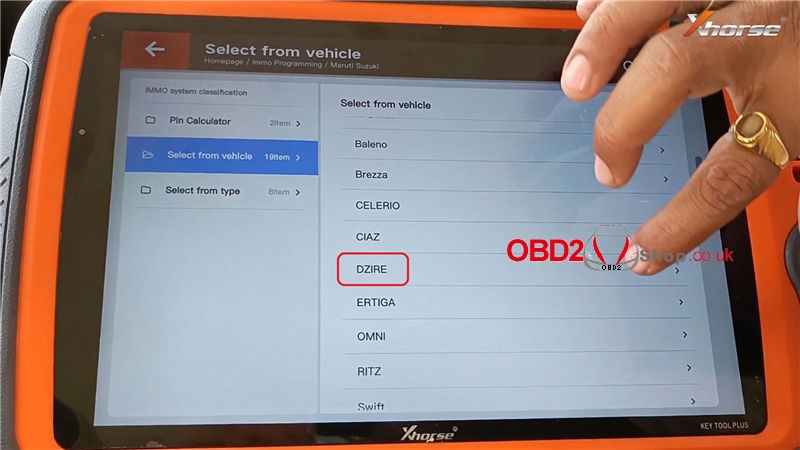

Immo programming >> Maruti Suzuki >> Select from vehicle >> Dzire >> New Dzire >> Start programming >> Free pin code(old)

Connect the device to the network, press “OK”.

Send the following ID code to the makers to query the security code, press “OK”.

By calculating the authorization code online, please wait...

After performing this function, all keys will be erased. Press “OK” to continue.

Hold the new key where the logo on the remote is facing and touching the start/stop button with the key. Press “OK”.

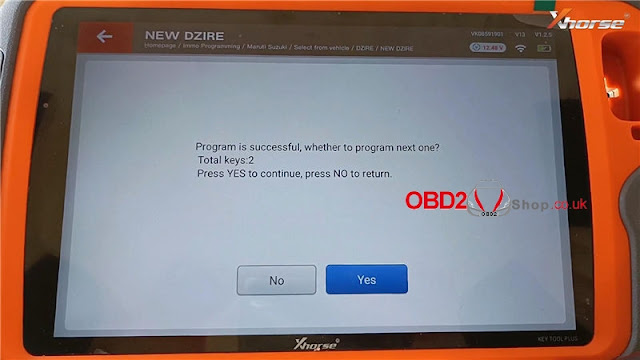

Program is success, press “Yes” to program next one.

Repeat same operations as before...

2 keys have been programmed, press “No” to finish.

Program is successful.

Press “OK” to complete.

Test the 2 keys, both remotes are well, and can start the engine normally.

Done!

This is using VVDI Key Tool Plus to program 2 keys for Suzuki Wagon R 2020 successfully.

Xhorse Dolphin XP005 Cuts a Honda RSX Key when All Key Lost

How to use the Xhorse Dolphin XP005 key cutting machine to make a Honda RSX key when all keys lost? Here is a quick demonstration I’ll show you.

Tools

A LISHI HON42/41 key reader

A Dolphin XP005 machine

A key blank to be cut

A smartphone installed with the Xhorse app

After calculation, the key bitting codes are: 11332312.

Procedure

Connect XP005 machine in Xhorse app, press

Customize key data >> Honda - RSX >> OK

Install M1 clamp as prompts, fix key blank flat on the clamp.

Input key bitting codes manually, press

Cutting key >> Cut

Dolphin XP005 machine starts cutting.

Wait processing until 100%...

Process complete, press “OK”.

Clean the metal debris, and take out the key to have a test.

It can open the lock.

Key cutting has done!

This is using Dolphin XP005 automatic machine to cut a Honda RSX key when all key lost successfully!

https://www.xhorse.co.uk/

How to Read Hyundai/Kia ID46 Pin Code by VVDI Key Tool Max?

How to find ID46 pin code for key programming on a Kia or Hyundai vehicle when we have a working key? Today I’m gonna use the Xhorse VVDI Key Tool Max to do it.

I’m in a 2012 Hyundai Sonata, this is a working key in the Key Tool Max coil.

Make sure Key Tool Max is connected to the Internet, press

Transponder clone >> Read transponder >> Clone >> Start clone >> Kia/Hyundai password

The Key Tool Max is going to read information from this key in depth...

At this point we need to sniff data from the vehicle, and you’re going to sniff that data using the working key and the programming slot if the vehicle has one. If the vehicle doesn’t have a programming slot, then you would sniff this data with the key from the push to start button. That will depend on what type of vehicle you have.

So I recommend selecting “Original key clone - long-distance sniffer”.

Open the armrest here, place the Key Tool Max as close to the programming slot as we can get it. Insert the working key and as you can see, the Key Tool Max was able to get the data sniffed from the vehicle.

And now it’s asking to put the original key back into the Key Tool Max coil.

Wait for a while...

Calculate success.

The pin code has been calculated.

So now you can use the pin code and program the duplicate key to this vehicle. You don’t have to get the password by some other means.

Using VVDI Key Tool Max to calculate pin code from a working key on 2012 Hyundai Sonata successfully!

https://www.xhorse.co.uk/

Xhorse Condor XC-Mini Cut Toyota TOY43 Key When All Keys Lost

How to use Xhorse Condor XC-Mini Plus key cutting machine to cut a TOY43 key for Toyota when all key lost? Today I wanna cut by bitting to finish the job.

Having calculated Toyota key buttings from lock, here we go to start.

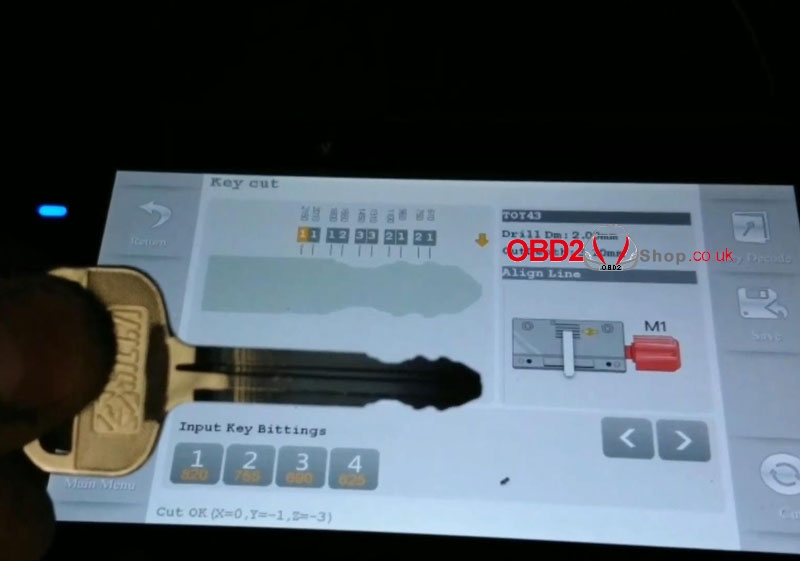

Press on Condor XC-Mini tablet screen:

Cut by bitting >> TOY43

Select key type:

Key ID: 940

Key width: 820

Cuts: 10

Cut depth: 0.00mm

Car maker: Toyota

Input cut bittings: 12332121

Fix the key blank on clamp, make it flat and tight.

Press “Cut”, XC-Mini machine starts cutting...

Take out the key when cutting finished.

It is with same bittings as TOY43 on screen, also, it can open the Toyota lock.

Done!

Using Condor XC-Mini Plus automatic machine to cut a Toyota TOY43 key by bitting successfully!

http://blog.obd2shop.co.uk/xhorse-condor-xc-mini-cut-toyota-toy43-key-all-key-lost/

Is VVDI Key Tool Plus Worth the Money? What do you think?

As more and more locksmiths purchase Xhrose VVDI Key Tool Plus, and have successfully tested some models, the other locksmiths who are still waiting will be curious "What do they think of Key Tool Plus? Shall I buy it or not?? Is it worth the money?

VVDI Key Tool Plus comes with all the options activated or you have to pay to activate them?

If you buy full version VVDI Key Tool Plus, it comes with all activations, tokens cost money on the other hand like for Mercedes or id48 calculation

Volkswagen 4th generation: Activated (Permanent)

Volkswagen 5th generation: Activated(Permanent)

CAS1/CAS2/CAS3 : Activated(Permanent)

CAS4/FEM_BDC : Activated(Permanent)

Benz authorization: Activated(Permanent)

Mini Prog authorization: Activated(Permanent)

AI-Car remote type: Activated

AI-Key blade type: Activated

AI-PIN code: Activated

Remote-vehicle remote: Activated

Remote-Garage remote: Activated

Remote-Proximity remote: Activated

Generate transponder -7935/46/4D/48/8C: Activated

Generate transponder - Toyota H(8A) : Activated

Transponder clone -ID48 (96bits): Activated (Paid license, support calculation with bonus points and token)

Transponder clone -ID46: Activated

Transponder clone -ID4D: Activated

Transponder clone -ID4E: Activated

Transponder clone -ID70/83: Activated

Transponder clone - ID11/12/13/4C/8C: Activated

Transponder clone -Toyota/Daihatsu G: Activated

Transponder clone -Toyota H (8A): Activated

Transponder clone -ID33/42: Activated

Transponder edit - 11/12/13/4C: Activated

Transponder edit -46/47/48/4D/4E: Activated

Remote clone -Fix code: Activated

Remote clone - Rolling code: Activated

Remote clone -Make new: Activated

Detect remote frequency: Activated

Remote Renew: Activated

Set type of VVDI Super transponder: Activated

VVDI Special TP: Activated

Special 4D to 4C: Activated

Unlock Toyota Smartkey: Activated

ID63 to ID83: Activated

Hyundai /Kia Pin code: Activated

Copy BYD smart key: Activated

Detect ignition coil signal: Activated

Online technical support: Activated

Technical center: Activated

Video center: Activated

History: Activated

Transponder Clone- ID48 offline: Activated

Cutting key from the database: Activated

All key lost query bitting: Activated

Find bitting: Activated

Cut by bitting: Activated

Universals key duplication: Activated

Immo programming: Activated

BYD all key lost: Activated

Memory: Activated

Immobilizer: Activated

Dashboard: Activated

Airbag: Activated

Is Key Tool Plus only an immo tool or does it support diagnostic, programming, etc like autel im608?

Mainly for immo, also supports Maintenance, cloud diagnosis mode-C, EEPROM, Remote Online-cloud Recognition, Key Renew, etc.

1.) Mainly for immo tool

Renault 4A Smart Card / Folding 4A	Add new key / program when AKL / Generate dealer key via OBD (Kadjar, Koleos, etc with Folding 4A key, no need to backup and is safe).
Mercedes FBS3	Add key / program when AKL for Mercedes FBS3, calculate password fast and in high success rate (use the Benz Power adapter, no need to unplug and plug repeatedly)
BMW	Add key / program AKL for CAS1 /CAS2 / CAS3+ / CAS4+/ FEM /BDC via OBD.
Volkswagen	Add key / program AKL for Volkswagen 2th / 3th / 3.5th / 4th/ 5th IMMO and MQB.
Volkswagen online	Support 4th immo add key and program when AKL/ A6 /Q7 (J518) AKL/ MQB add key and AKL / 5C add key, works with VVDI remotes fast and safely.
Toyota 8A mechanical key	Add key and program AKL via OBD(when akl, no need to dismantle central control, replace the immobilizer, requires the 8A adapter
Mitsubishi	Add key / program akl / generate dealer key (OUTLANDER EX, ASX, etc) via OBD.
Porsche	Porsche (-2018) key generation / OBD key programming (key tool plus read the data, generate the key, OBD programming)
Peugeot /Citroen/DS	Read pincode, add a new key, program key when all keys lost via OBD.
Ford (-2018)	Program the smart key without pin code for all Ford before the 2018 year.
Ford (2019-)	Program key without backing up PFLASH for the Ford after 2019 (Focus, Escort)
Jeep Dodge Chrysler	Read the pincode and program key via OBD for Jeep Dodge Chrysler after 2018.
Fiat, Viaggio，Palio	Add key, program when AKL, generate dealer key via OBD.
Buick Chevrolet Cadillac	Read the pincode (46 chip) via OBD, for the other 4D /47 chips query the pincode online (for partial car models).
Hyundai Kia	Read pin code and program key via OBD for 46 /47/8A chip.
Honda after 2019 AKL programming	Program key when AKL via OBD for 10th Accord, ENVIX, FIT, INSPIRE
Volvo (before 2016)	Non-smart key programming via OBD without dismantling, Non-smart key programming by dismantling the ECM, smart key programming by dismantling the ECM / KVM.
Chinese Cars	Program key for common Chinese cars, for a part of cars it can calculate the password or read the password via OBD.   Calculate the password for the immobilizer system from Tongzhi, Lianchuang, Delphi, Shanghai SIIC Transportation, Siemens.
	Read the pin code for Changan UNI-T immobilizer system. Read pin code for Geely NEW VISION X3 / Jiaji / Bin Rui /ICON with smart key (Euro 6) Program smart key without pin code for Jiangling Yusheng S350 /S330 Program key without pin code for FAW Pentium B30/B50/B70/B90/T77 Program smart key without pin code for FAW Xenia R7/R9 Program key without pin code for Dongfeng Fengshen AX3/AX5/AX7/MX5 Calculate the login password free of charge Program smart key without pin code for GAC Trumpchi Read the pin code for BAIC smart key (2018-) ...
Other car models	A wide range of car models worldwide, features in frequent update. Not list all here.

2.) More than one immo tool

Maintenance	Oil service reset, Throttle programming, Tire pressure programming, steering angle learning, battery match etc.
cloud diagnosis mode-C	Support " cloud diagnosis mode-C " (No need to purchase extra device.
File make key	Support all car models file make key (for Land Rover after 2015, Porsche and Chinese cars), directly write smart key for Mitsubishi 46 chip without programming.
EEPROM	Support common EEPROM, car immobilizer module, read BMW ISN without dismantling.
Generate Remote	Support original remote controller/ smart car remote controller / garage door / Toyota smart card.
Remote Online-cloud Recognition	Automatically identify the remote types, no need to choose the remote controller.
Clone remote	Support remote clone.
Generate chip	Support a bunch of cars' dedicated chips (ID42/ID44/ID46/ID47/ID67/ID68/G/8A etc).
96bit 48 Copy	Support 96bit 48 copy, the server calculate the password quickly.
46 copy	Support 46 copy, Fiat AKL, Hyundai Kia password calculation quickly.
4D copy	Support 4D/70/83 copy, the server calculate the password quickly.
8A copy	Support 8A chip copy.
8C /11/12/13	Support 8C /11/12/13 chip copy.
VVDI Super Remote	Support using VVDI Super Remote to generate the dedicated chip, when file make key, it doesn't need re-write, just directly copy.
Key Renew	Can renew the various of used original key as the new key.

Would you advise me to buy vvdi key tool plus, or vvdi 2 + vvdi prog In terms of achievements?

1. KEY TOOL PLUS can be used for Mercedes-Benz key programming

2. KEY TOOL PLUS can connect to Xhorse key cutting machine (Condor, Dolphin) through Bluetooth. (The last image below)

3. In the key programming aspect, KEY TOOL PLUS basically integrates all Xhorse key programmers (VVDI2, OBD, MB etc), and it can also obtain IMMO data online.

4. KEY TOOL PLUS mainly offer the solution of locksmith key matching. The programmer also supports the basic IMMO function. Because of the different market positioning, the functions of KEY TOOL PLUS is different from that of VVDI2, VVDI MB, and VVDI PROG.

KEY TOOL PLUS features in key programming. The VVDI series (VVDI2, VVDI MB, and VVDI PROG ) will add some professional functions such as programming, coding, parameter refresh, etc., and KEY TOOL PLUS may not support these functions.

Therefore, it is recommended that old customers keep the original equipment as much as possible, as migration is not the best choice.

Shall I buy Key Tool Plus or not? What do you think?

I think key tool plus works great, not new extra for more money. Although, it’s still in development it has a long way to go hopefully.

Can you add and do all keys lost on BMW and Mercedes with this tool?

Mercedes all key lost by cable outside-not problem.

Can the VAG obd helper cable be directly plugged into the key tool plus to read immo data rather than also having to use a laptop?

as long as you're not trying to get any Immo data from AUDI.

Where can I check out my own tokens of key tool plus?

First screen when you choose the menu, 100 points = 1 token.

go to the calculation password will send you a token you do

Please look at this video for details:

Alright, do you have an idea that VVDI Key Tool Plus is worth the money or not?

If yes, go for this link
